SWVBT-SYNC


Archived Product

No longer for sale.

Built for all-day trail rides and enduro racing, and developed with the World Championship-winning Atherton DH Team, our new Bravo wheelset rethinks carbon fiber from the ground up. The Bravo's Radial Impact Absorbing Carbon Technology (RiACT) is three times stiffer than our aluminum rims laterally, but absorbs radial impacts to withstand bigger hits and roll faster.

Patented Bead Socket tubeless technology improves traction, and creates a lighter, stronger rim. Weighing less than 1608g (26"), the Bravo's 32mm WideRight profile increases tire volume without negatively affecting tread shape or sidewall height. With the added durability and quick engagement of our new Neo and Neo Ultimate hubs, the Bravo is the new benchmark for all trail wheelsets.

What’s Included:

Bravo wheels include pre-installed tape for tubeless use and presta valve; 15x100mm front wheels include quick-release end caps and quick release; 12x142mm rear wheels also include quick-release end caps and quick release; small parts bag, replacement spokes, and spoke tension readout for your unique wheelset.

FEATURES

  • Designed for Trail, All-Mountain and Enduro Racing

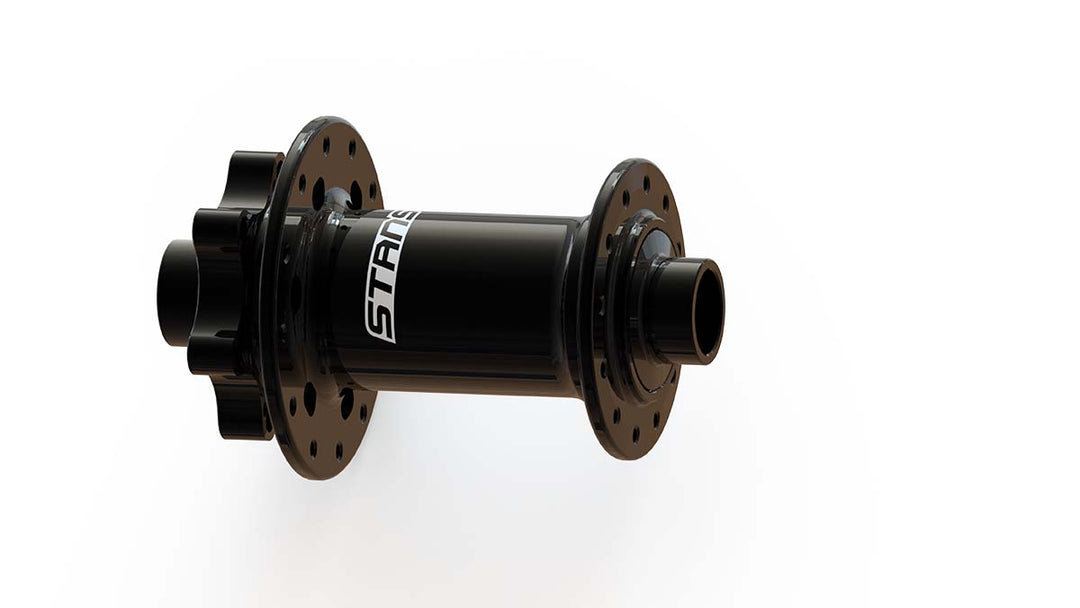

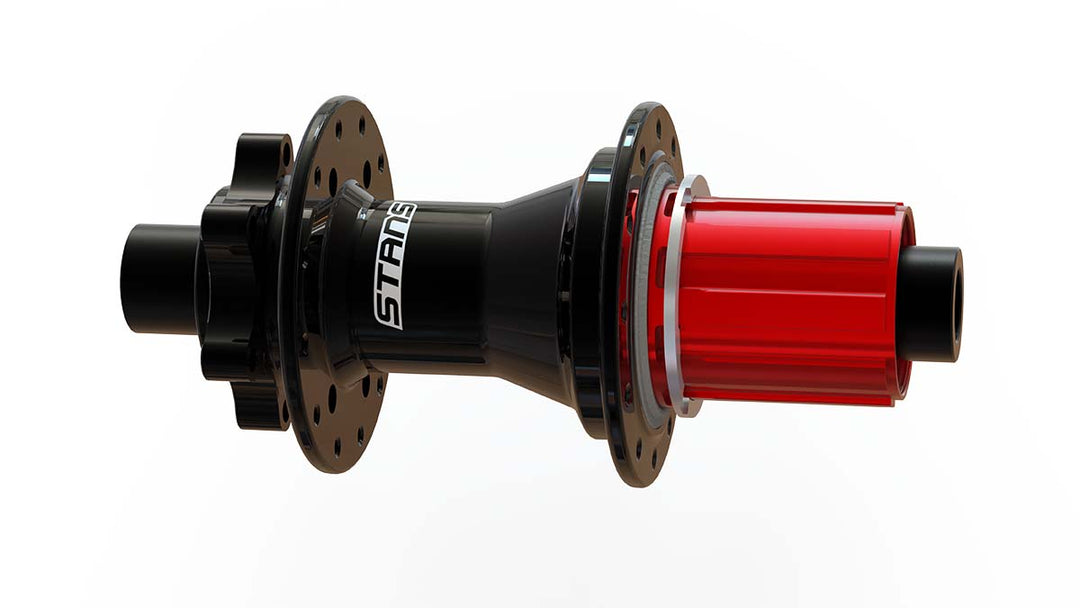

  • Faster engaging, 100% CNC machined Neo Hubs

  • Sapim Race 2.0/1.8/2.0 spokes with Secure Lock aluminum nipples

  • RiACT system absorbs impacts and rolls faster

  • Bead Socket Technology for unmatched tubeless performance

  • WideRight rim design optimized for wider Trail and All-Mountain tires

  • 2-year warranty with 3-year crash replacement

  • Available for Shimano or SRAM XD cassettes

  • Available for all current axle systems, including Cannondale Lefty SL, Lefty Supermax, SRAM Predictive Steering, and Boost 110mm and 148mm spacing

  • 1807g
Rim Internal Width: 26.0mm            Wheelset Weight: 1684g (26") / 1732g (27.5") / 1807g (29”)
Rim External Width: 32.0mm   Rim Weight: 432g (26") / 450g (27.5") / 475g (29")
Rim Depth: 19.5mm   ERD: 537mm (26") / 563mm (27.5") / 600mm (29")
Spokes: Sapim Force Black 2.0/1.8/2.0mm   ETRTO: 559x26.0 (26") / 584x26.0 (27.5") / 622x26.0 (29")
Nipples: Sapim Secure Lock Alloy Black   ISO: 26"x32.0mm / 27.5"x32.0mm / 29"x32.0mm
Hub: Neo with Durasync   Tape: 25-27mm
Hole Count: 28-hole, 28-hole   Valve: 35mm Presta
Rim Material: Carbon   Max Spoke Tension: 105kgf (1025N)
Rim Color: Black   Max Pressure with 2.20" Tire: 39psi
Hub Color: Black   Max Pressure with 2.50" Tire: 36psi
Brakes: Disc Only   Max Rider Weight: 250lbs (113 kilo)



Rim Internal Width: 26.0mm            Wheelset Weight: 1684g (26") / 1732g (27.5") / 1807g (29”)
Rim External Width: 32.0mm   Rim Weight: 432g (26") / 450g (27.5") / 475g (29")
Rim Depth: 19.5mm   ERD: 537mm (26") / 563mm (27.5") / 600mm (29")
Spokes: Sapim Force Black 2.0/1.8/2.0mm   ETRTO: 559x26.0 (26") / 584x26.0 (27.5") / 622x26.0 (29")
Nipples: Sapim Secure Lock Alloy Black   ISO: 26"x32.0mm / 27.5"x32.0mm / 29"x32.0mm
Hub: Neo with Durasync   Tape: 25-27mm
Hole Count: 28-hole, 28-hole   Valve: 35mm Presta
Rim Material: Carbon   Max Spoke Tension: 105kgf (1025N)
Rim Color: Black   Max Pressure with 2.20" Tire: 39psi
Hub Color: Black   Max Pressure with 2.50" Tire: 36psi
Brakes: Disc Only   Max Rider Weight: 250lbs (113 kilo)

Three times stiffer than our aluminum rims laterally, but absorbs radial impacts to withstand bigger hits and roll faster.

Our WideRight profile increases tire volume without negatively affecting tread shape or sidewall height.
